- BULL- CH 76 CHALLENGER
Bucket Options
Different types of application specific quick interchangeable loader bucket options.
6 in 1 Open
Bucket
14 Feet
Ext Bale
14 ft HD HV
Bucket
Bagasse Dozer
Backhoe
Bucket
Trench Bucket
Grabbing Fork
Balegrabber
Bucket
Booster
Bucket
Compactroller
Bucket
Grabbing Fork
Booster Bucket
HDHV
High Volume
Grabbing Bucket
High Volume
Grabbing Coir
Log Fork
Standard Bucket
Stone Bucket
Sugacane
Loader CE
Technical information
- Dimensions
- Engine
- Tyres
- Hydraulics
- Weight
- Drive
- Transmission
- Turning Circle
- Steering
- Electricals
- Speed

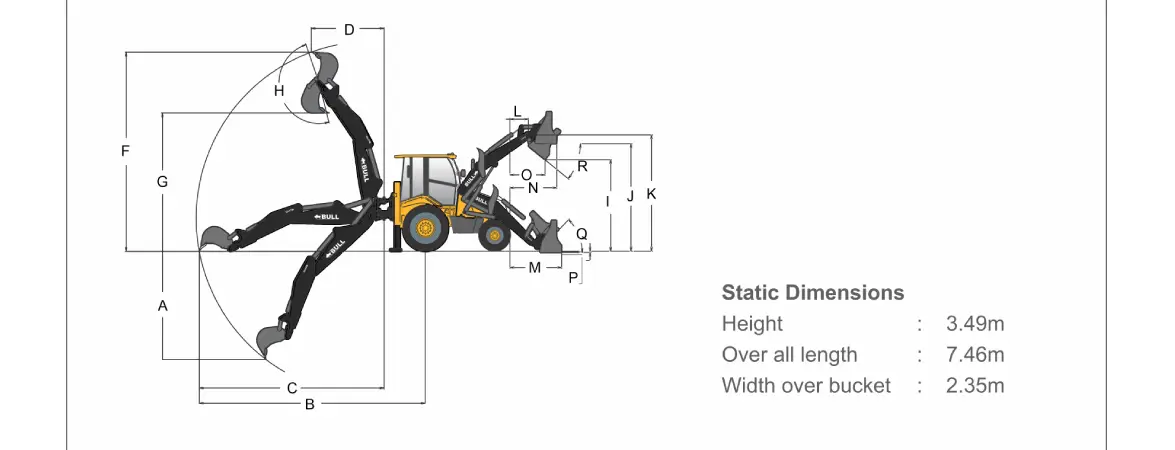

Dimensions
Loader Performance
| Challenger With Link Bracket | Challenger Without Link Bracket | ||
| Standard GP Bucket Capacity | 1.26 cu.m | 1.26 cu.m | |
| I | Dump Height | 2.96 m | 2.96 m |
| J | Load Over Height | 3.39 m | 3.39 m |
| K | Pin Height | 3.61 m | 3.61 m |
| L | Pin Forward Reach | 0.42 m | 0.42 m |
| M | Reach at Ground | 1.60 m | 1.47 m |
| N | Reach at full height | 1.42 m | 1.28 m |
| O | Reach at full Height bkt Dumping | 1.1 m | 0.89 m |
| P | Below ground level DIG Depth | 0.08 m | 0.1 m |
| Q | Roll back at Ground | 50° | 49° |
| R | Dump Angle | 45° | 45° |
| Bucket Break-out Force | 8183 kgf | ||
| Loader Arm Break-out Force | 5315 kgf | ||
| Pay Load | 2200 kgf | ||
| Lifting Capacity At Loader Arm Hook Pin | 2600 kgf |
Excavator Performance
| Challenger STANDARD | ||
| Standard GP Bucket Capacity | 0.26 cu.m | |
| Maximum DIG depth | 4.77 m / 15 ft-7.7 in | |
| Reach Ground Level to Rear wheel center | 6.77 m / 22 ft-2.53 in | |
| Reach at Ground level to slew center | 5.47 m / 17 ft-11.35 in | |
| Reach at full height to slew center | 2.82 m / 9 ft-3 in | |
| Maximum working height | 5.98 m / 19 ft-7.4 in | |
| Maximum Load over Height | 4.19 m / 13 ft-9.3 in | |
| Bucket Rotation angle | 201° | |
| Bucket Tear out force | 5936 kgf | |
| Dipper Tear out force | 3109 kgf |
| ENGINE | Challenger Standard |
| Engine Model | Ashok Leyland H4CSE5520 BS-V (CEV) |
| Engine Type | Diesel Engine |
| Aspiration | Turbocharged |
| Gross Power | 55 HP (40.5 kW) @ 2000 rpm |
| Gross Torque | 290 Nm @ 1200 rpm |
Tyres
Front: 2WD – 9.00 × 16 - 16 PR
Rear – Industrial: 16.9 × 28 - 12 PR
Rear – Heavy Duty: 14 × 25 - 20 PR
Hydraulics
Pump Type: Load Sensing Variable Piston Pump
Pressure: 3335 psi (230 bar)
Pump Flow: 108 lpm @ 2000 rpm
119 lpm @ High rpm
Weight
Operating Weight: 2WD - 8010 kgs (Standard Bucket)
Drive
Drive Type: 2 Wheel Drive
Transmission
Make / Configuration: CARRARO – 2WD
Type: Synchro-shuttle transmission with integral torque convertor

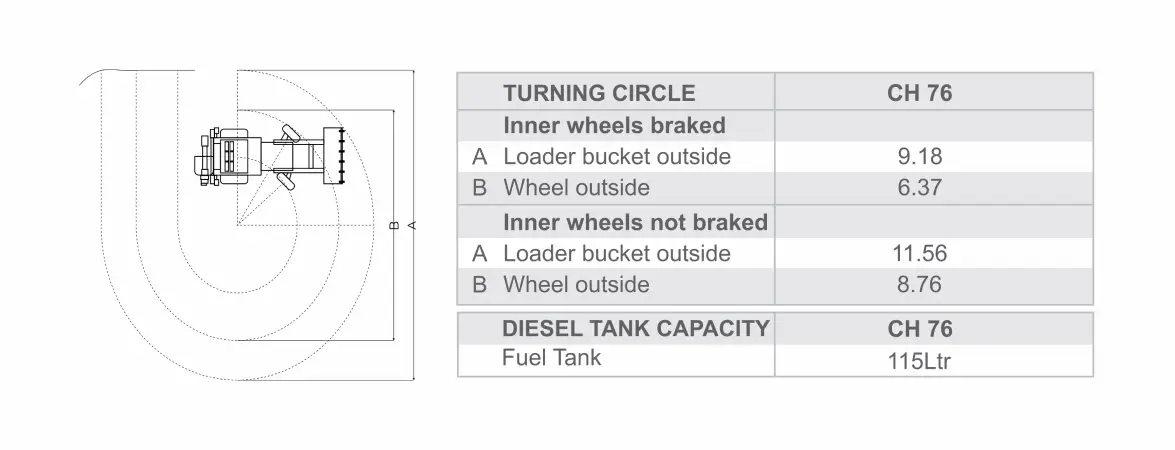

Turning Circle
Steering
Type: Power Steering
Electricals
12V Battery System (150 Ah)
Speed
Forward Maximum: 36 km/hr
Reverse Maximum: 9.3 km/hr (2nd gear)
