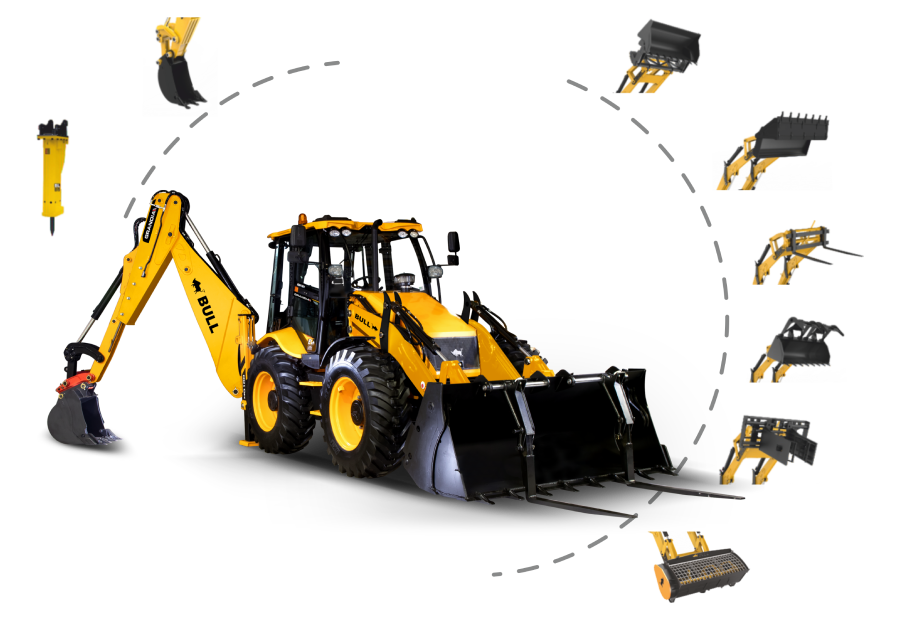

Bucket Options
Different types of application specific quick interchangeable loader bucket options.
6 in 1 Open
Bucket
14 Feet
Ext Bale
14 ft HD HV
Bucket
Bagasse Dozer
Grabbing Fork
Balegrabber
Bucket
Booster
Bucket
Compactroller
Bucket
Grabbing Fork
Booster Bucket
HDHV
High Volume
Grabbing Bucket
High Volume
Grabbing Coir
Log Fork
Standard Bucket
Stone Bucket
Sugacane
Loader CE
Technical information
- Dimensions
- Specification
- Engine
- Transmission
- Axles
- Breaks
- Steering
- Electricals
- Tyres
- Speed
- Hydraulics
- Weight
- Service Capacities
- CAB
- Options
Dimensions
Loader Performance
| With Link Bracket | Without Link Bracket | ||||
| meter | ft -inch | meter | ft -inch | ||
| Standard Bucket Capacity | 1.1 cu.m G.P Showel | ||||
| I | Dump Height | 2.93 m | 9ft-7.3in | 2.96 m | 9ft-8.5in |
| J | Load Over Height | 3.39 m | 11ft-1.4in | 3.39 m | 11ft-1.4in |
| K | Pin Height | 3.61 m | 11ft-10in | 3.61 m | 11ft-10in |
| L | Pin Forward Reach | 0.42 m | 1ft-4.5in | 0.42 m | 1ft-4.5in |
| M | Reach at Ground | 1.60 m | 5ft-2.9in | 1.47 m | 4ft - 9.87in |
| N | Reach at full height | 1.42 m | 4ft-7.9in | 1.28 m | 4ft-2.3 in |
| O | Reach at full Height bkt Dumped | 1.1 m | 3ft-7.3in | 0.89 m | 2ft-11in |
| P | Below ground level DIG Depth | 0.08 m | 3 in | 0.1 m | 3.9 in |
| Q | Roll back at Ground | 500 degree | 490 degree | ||
| R | Dump Angle | 450 degree | 450 degree | ||
| Bucket Break-out Force | 8183 kgf | ||||
| Loader Arm Break-out Force | 5251 kgf | ||||
| Pay Load | 1800 kgf | ||||
Excavator Performance
| Standard | Extension (Option) | ||||
| meter | ft -inch | meter | ft -inch | ||
| Standard Bucket Capacity | 0.27 cu.m (standard) | ||||
| A | Maximum DIG Depth | 4.6m | 15ft-1in | 5.60m | 18ft-4in |
| B | Reach Ground Level to Rear wheel center | 6.81m | 22ft - 4in | 7.91m | 25ft-11in |
| C | Reach Ground Level to slew center | 5.5 m | 18 ft | 6.60m | 21ft-7in |
| D | Reach at full Height to slew center | 2.85m | 9ft - 3in | 3.56m | 11ft-8in |
| F | Maximum working Height | 5.92m | 19ft - 5in | 6.77m | 22ft-2in |
| G | Maximum Load over Height | 4.14 m | 13ft - 6in | 5.02m | 16ft-5in |
| H | Bucket Rotation - Power | 1880 degree | |||
| Bucket Tear out Force | 6072 kgf | ||||
| Dipper Tear our Force | 3150 kgf | ||||
| Lift capacity to bucket Pivot at full Reach (without Bucket) |
1400 kgs | ||||
Static Dimensions
| in (m) | in (ft-inch) | ||
| A | Over all lenth | 6.04 m | 19 ft - 9.82 in |
| B | Wheelbase | 2.22 m | 7 ft - 3.39 in |
| C | King post travel | 1.03 m | 3 ft - 4.5 in |
| D | Minimum ground clearance | 0.48 m | 1ft - 6.81in |
| E | Slew ground clearance | 0.65 m | 2ft - 1.6in |
| F | Height to top of bonnet | 1.99 m | 6 ft - 6.34 in |
| G | Height to top of cabin | 3.00 m | 9 ft - 10.46 in |
| H | Over all height | 3.71 m | 12 ft - 2.1 in |
| J | Track width - rear | 1.70 m | 5ft - 6.92in |
| K | Track width - front | 1.93 m | 6 ft - 3.98 in |
| L | Width over bucket | 2.35 m | 7 ft - 8.5 in |
| M | Side reach to center line of machine | 6.08 m | 19 ft - 10 in |
Specification
| Description | mm(Ft-inch) | |
| O | Loader Hinge Pin Height | 3610(11' - 10") |
| M | Bottom Opening Dump Height | 2960(9' - 8") |
| C | Reach at Ground (Carry Position) | 5470(17' - 11") |
| U | Roll Back at Ground | 50° |
| T | Depth of the Bucket | 160(0.5' - 6") |
| V | Bucket Opening Distance | 45° |
Engine
| Engine | PERKINS 1104D-44TA, EU NRMM 97/68/EC EURO III 3A Diesel Engine (4400CC) |
| No of cylinder: | 4 |
| Gross Power: | 74.5 kW (100HP) at 2200 RPM |
| Gross Torque | 410 Nm @1400 RPM. |
Transmission
BULL GRANDIA comes with CARRARO AUTOMATIC transmission transmission that provides superb drive power in all conditions. it consists of a 4-speed fully synchromesh gearbox with integral torque convertor and electrically operated forward & reversing shuttle.
The pedals layout and conventional 4 pattern gear lever with transmission disconnect switch adds to the overall ease of operation. On the move gear changes are possbile.
Option: SMART HTS offers state of the art open loop Hydrostatic drive(Patent pending).
Axles
Rear: Drive axle rigidly mounted, incorporates Max-trac torque proportioning differential, driven by short propshaft from gear box.
Front: Steer axle, centrally pivoted with oscillation angle ±16°.
Breaks
Service: Hydraulically actuated, duel line, self adjusting, compensated oil immersed, multi-disc type on the rear axle, well protected from dirt, water etc., requiring no maintenance. Operation Through independent pedals linked together for normal use.
Two independently operatable foot pedals enable machine to maneuver in tight spaces.
Parking: Hand operated, oil immersed multi disc on the rear axle.
Steering
3 Modes (Circular Mode, Crab Mode & Two wheel steer Mode)
180 Ampere-hour 12 volts battery system with alternator and full road lighting.
Electricals
12V Battery System 180Ah
Tyres
Front: 16.9 X 28 - 12PR
Rear: 16.9 X 28 - 12PR
Speed
| Forward Km/hr | Reverse Km/hr |
| Max: 36 Km/Hr | Max: 18 Km/Hr |
Hydraulics
SMART technology hydraulics : 3335 psi (230 bar).
Pump flow : 145 lpm @2200 prm
Pump TypeLoad Pump( piston pump option)
Weight
9700 kgs with Standard GP Bucket Option
Service Capacities
| System | Service | |
| Hydraulic Tank | 120 Ltr | 100 Ltr |
| Fuel Tank | 115 Ltr | 115 Ltr |
| Engine Coolant | 17 Ltr | 15 Ltr |
| Engine Oil | 13 Ltr | 13 Ltr |
| Transmission | 19.5 Ltr | 13 Ltr |
| Rear axle | 16 Ltr | 16 Ltr |
| 4WD Front Axle | 11.2 Ltr | 11.2 Ltr |
CAB
- Front Curved cab glasses provide excellent visibility.
- Excellent operator safety. Conforms to ROPS and FOPS standards .
- Plenty of legroom minimises fatigue and allows the operator to work un-interrupted for long hours.
- A fully adjustable seat combined with ergonomically positioned controls and soft touch adjustable steering wheel.
- Cab provides easy 'walk through' two door access. Other features include seat belt, large convex rear view mirror, interior light, front screen wiper, front and rear horn, hazard warning system, tool box and helper seat.
- Instrumentation panel is positioned on the right hand side includes engine speed, engine hours, fuel level and water temperature.
- Audible and visual fault warning system for alternator charge, coolant temperature, engine oil pressure, blocked air filter, transmission oil temperature and hand-brake on.

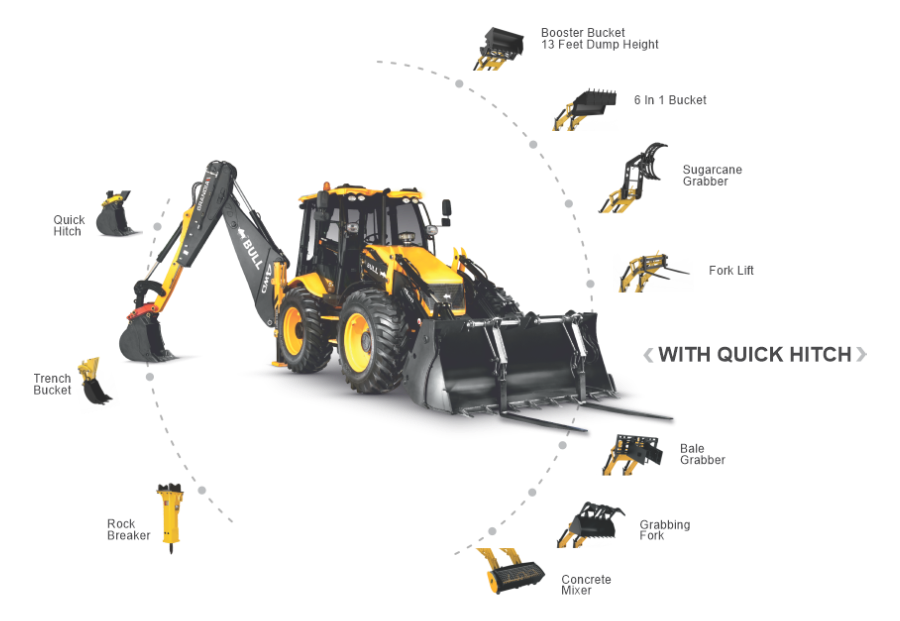

Options
Excavator Buckets
Capacities
- 0.22 cu.m (standard)
- 0.12 cu.m
Options
- 0.17 cu.m
- 0.21 cu.m
Ditch Cleaning Bucket
Taper Ditching Bucket
Square hole bucket
Rock Breaker
Ripper Tooth
Trench Bucket
Loader booster bucket with 12ft-11 inch dump height
6 in 1 Bucket
4 wheel drive

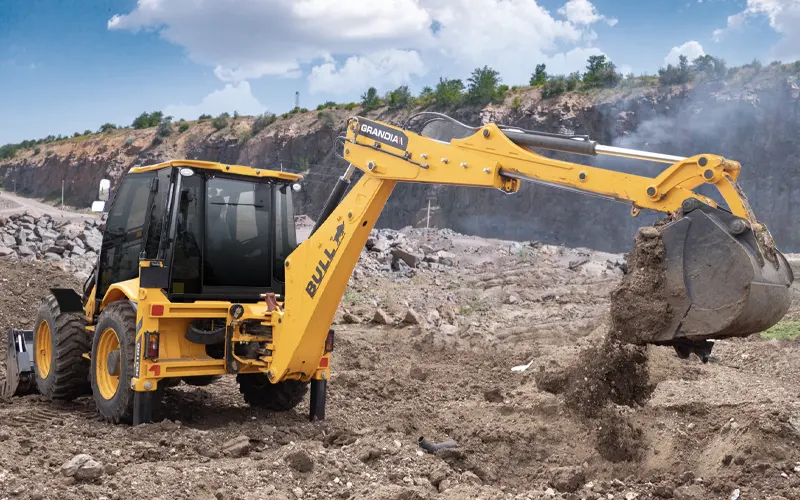

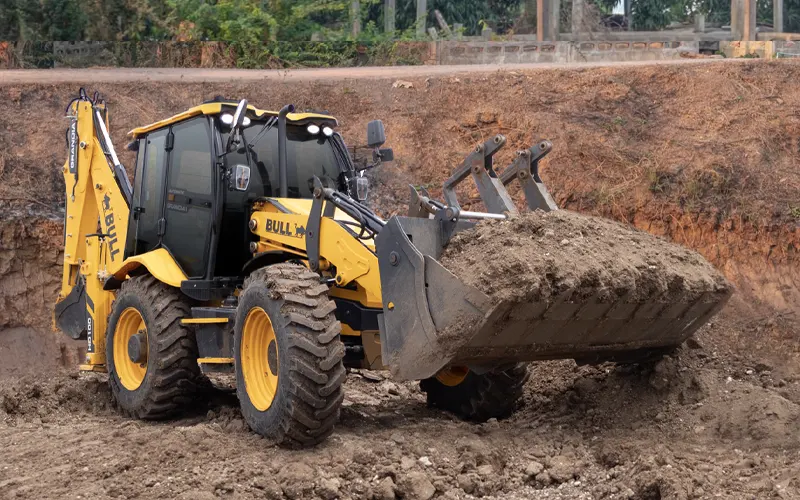

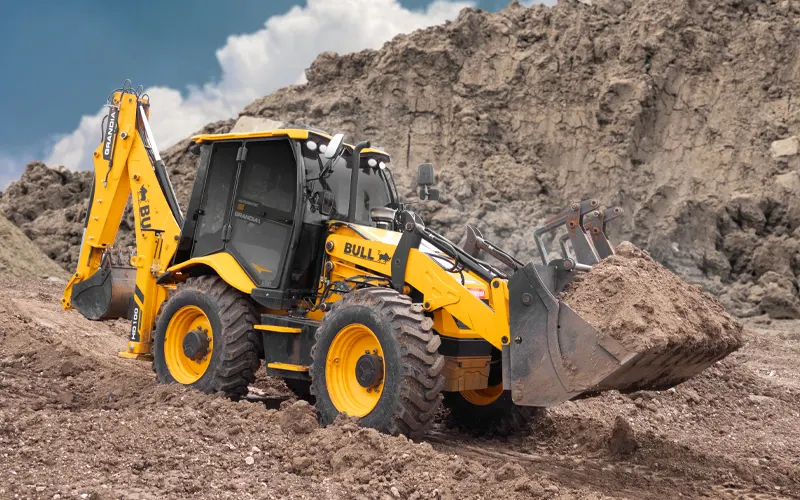

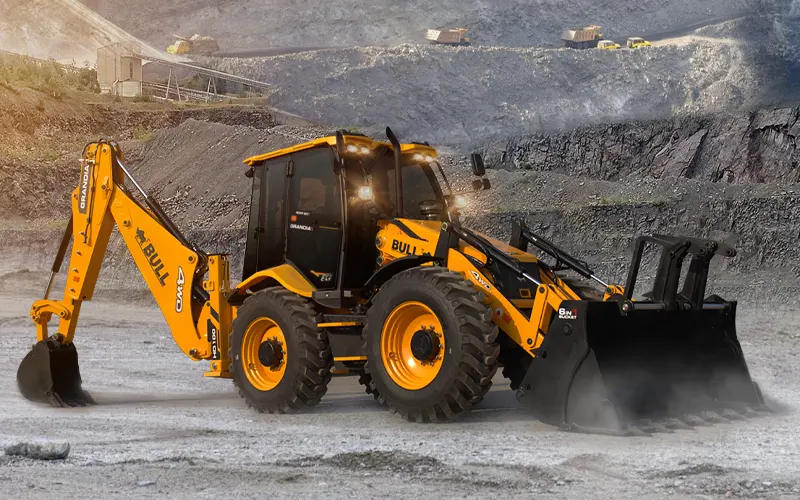

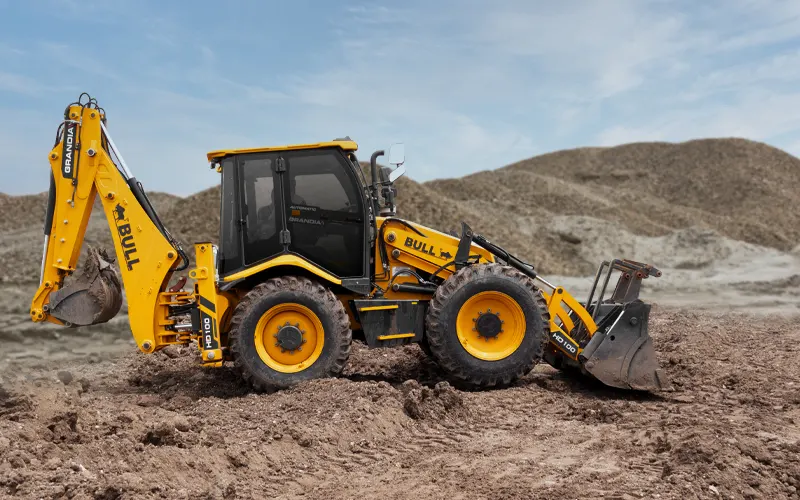

Images
