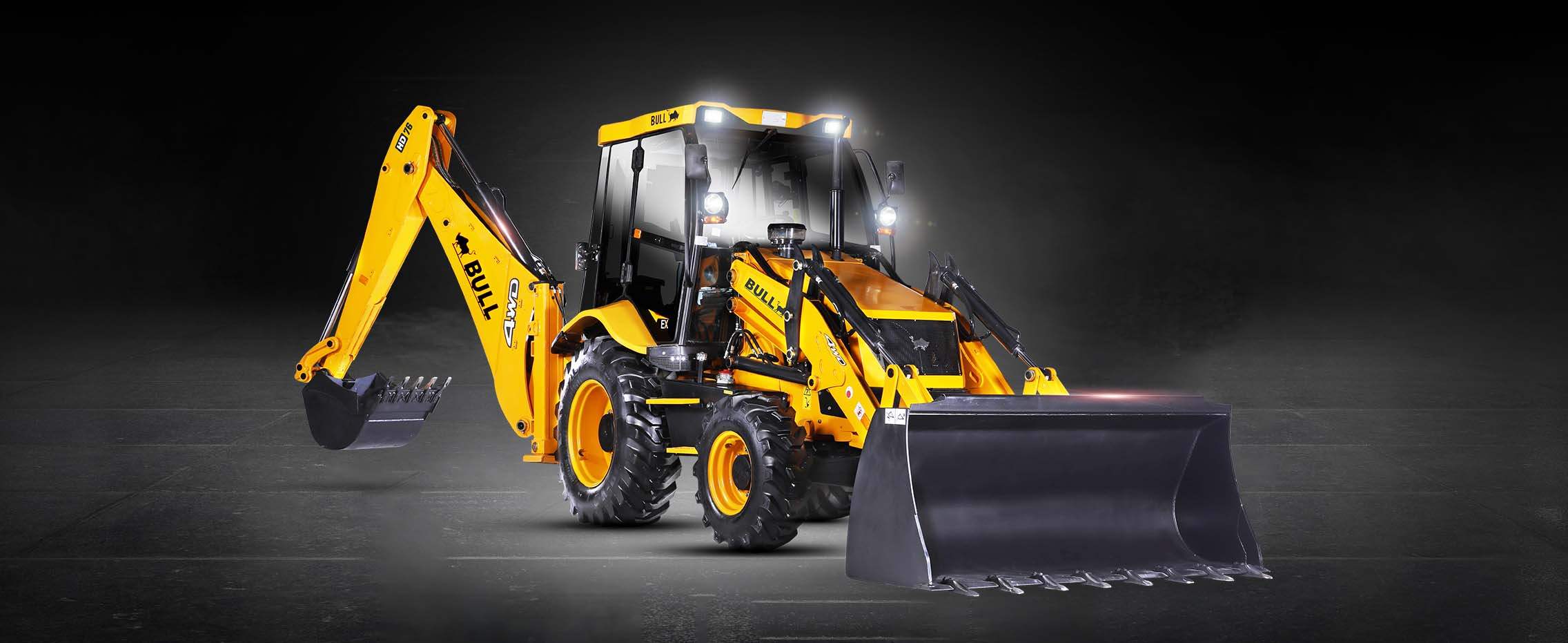

- HD76 - BS4 Heavy Duty
Salient Features
Salient Features

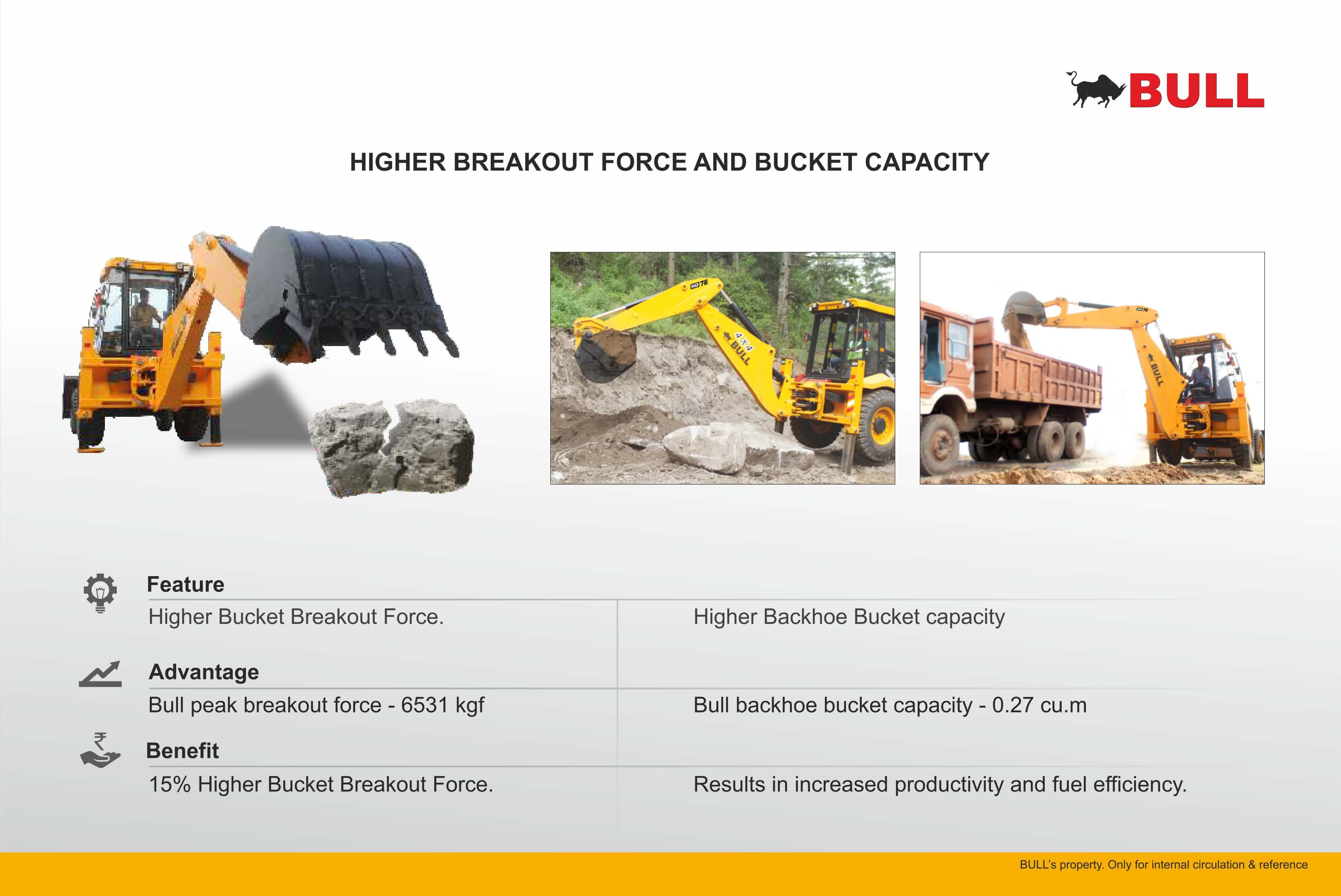

highest bucket breakout force in its class

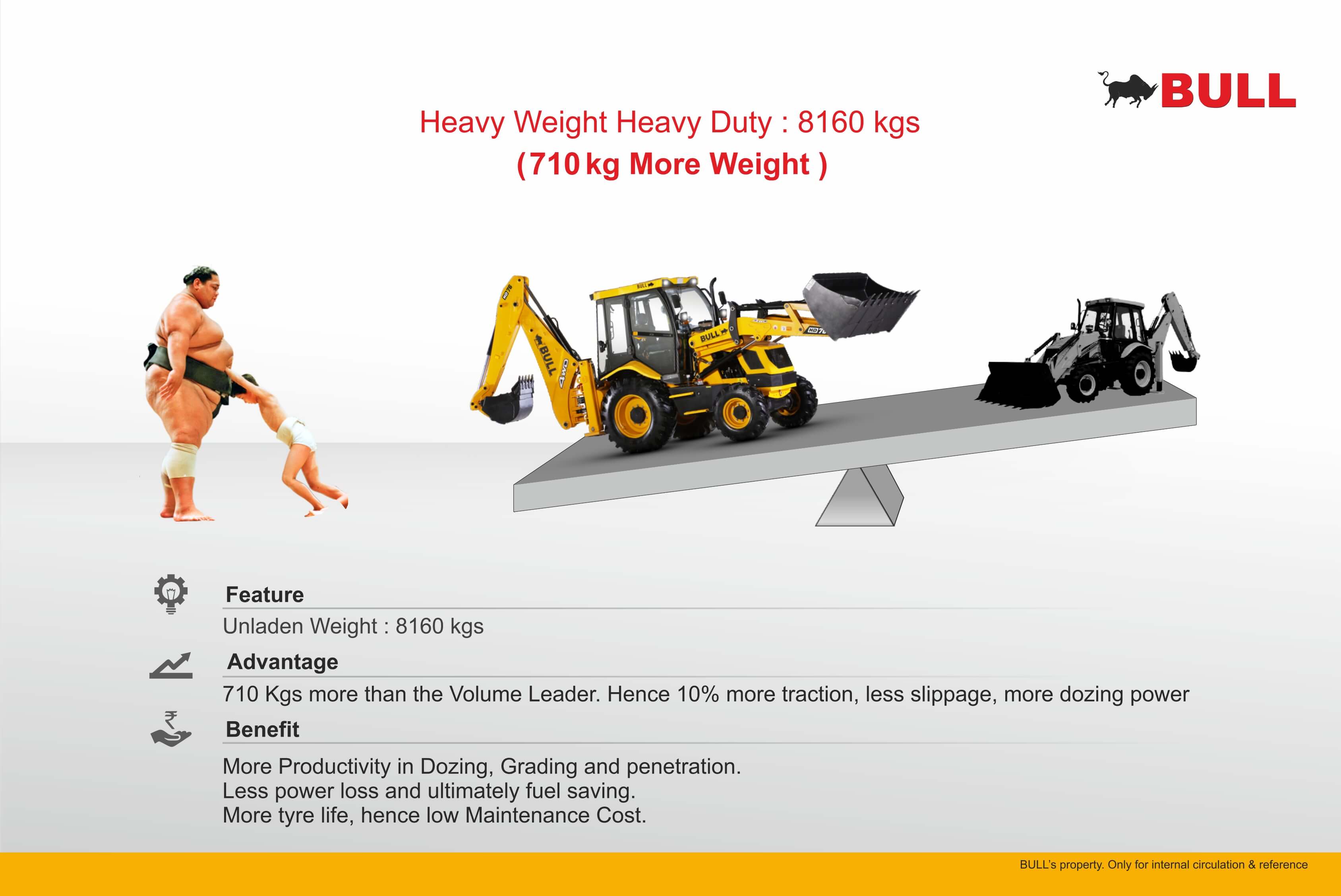

Heavy weight champion

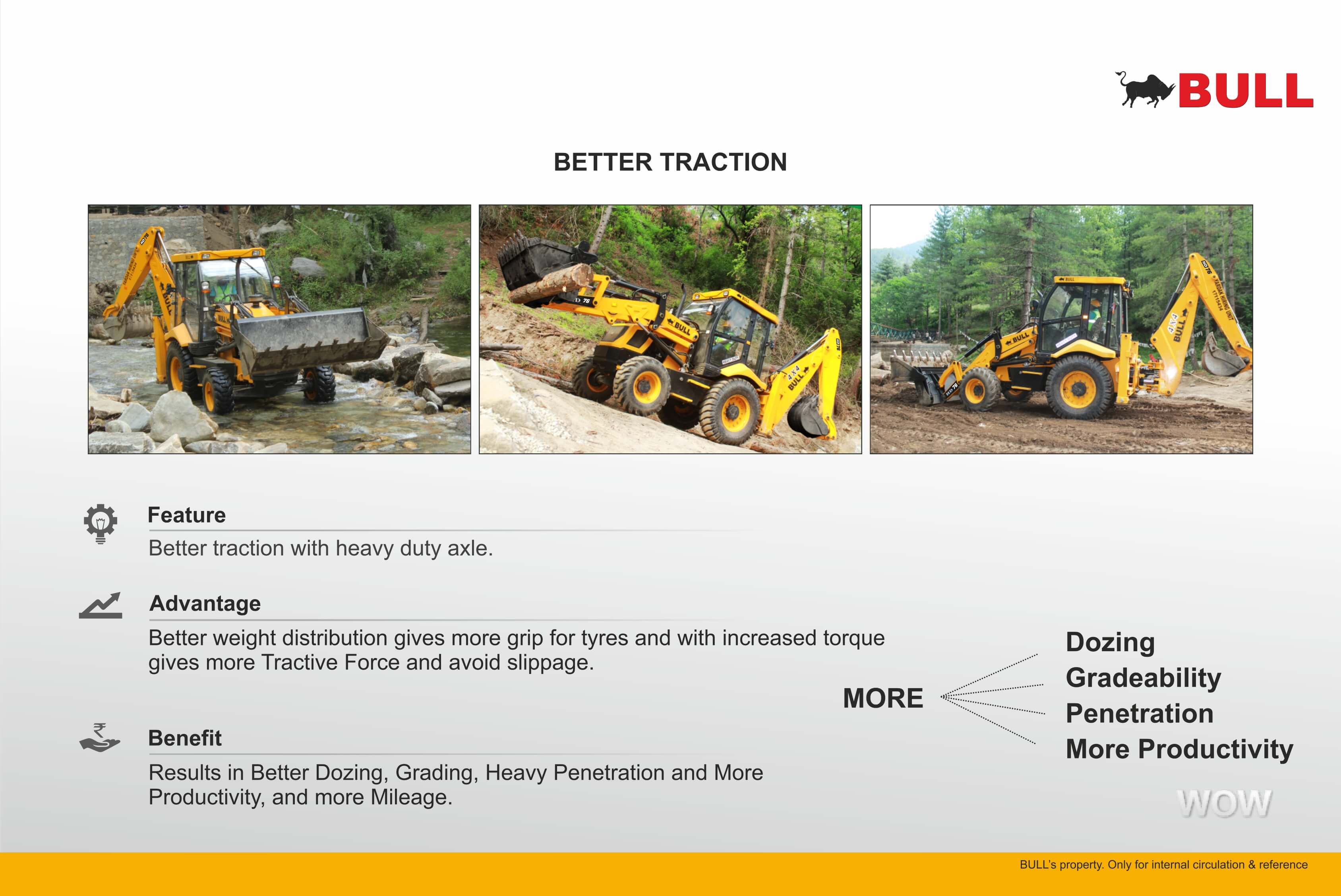

10 % More traction

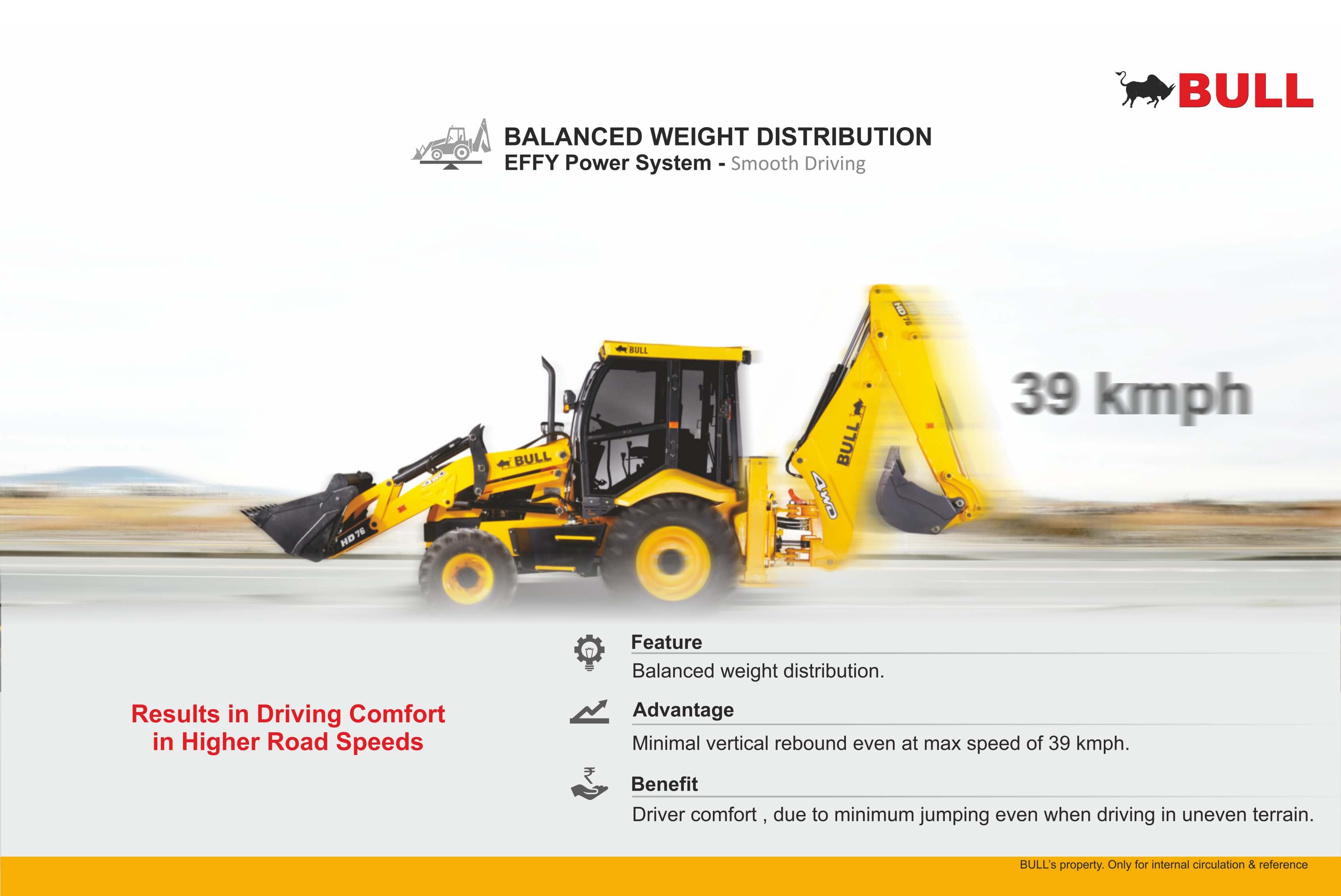

Comfort Driving

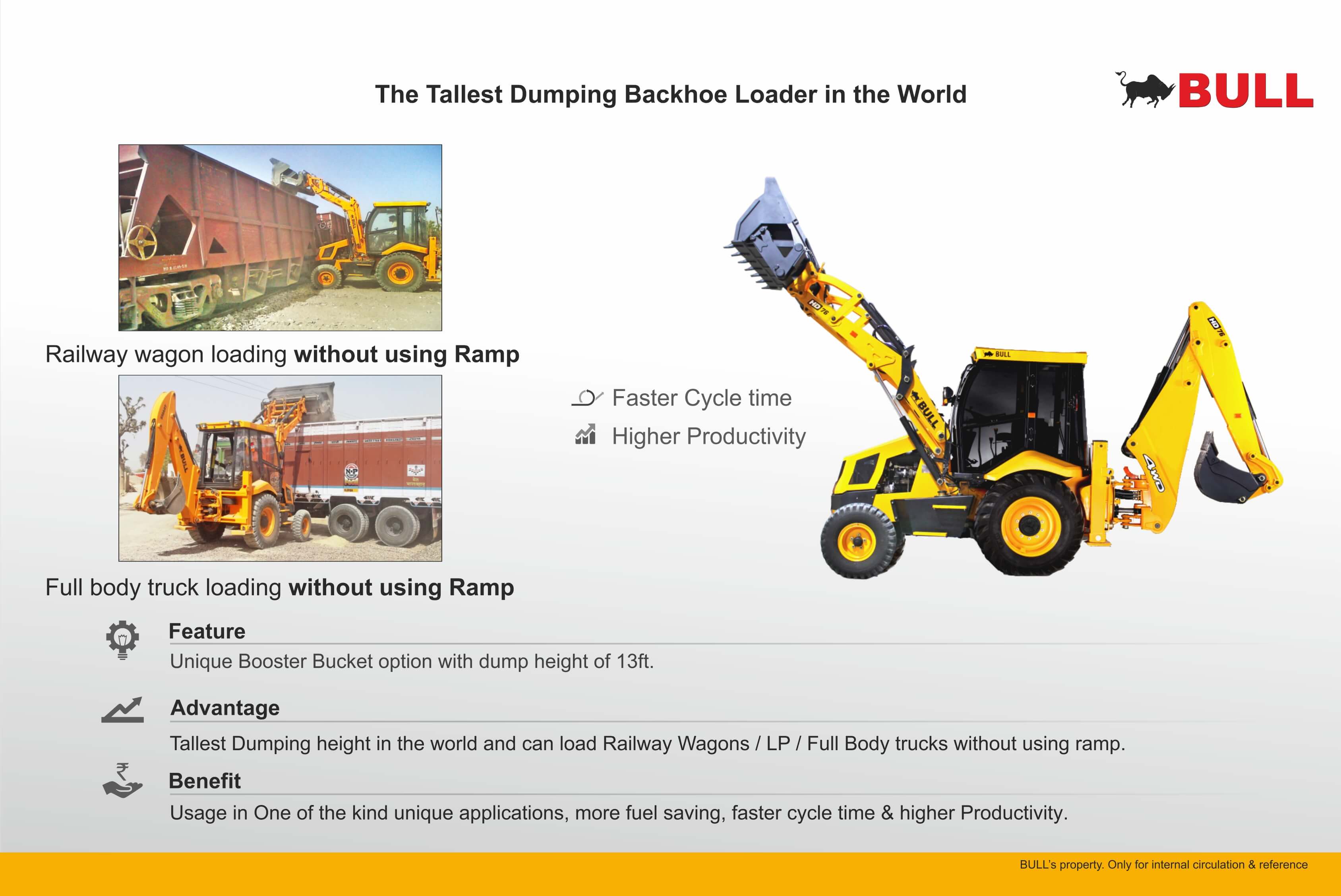

Tallest Dumping Backhoe loader

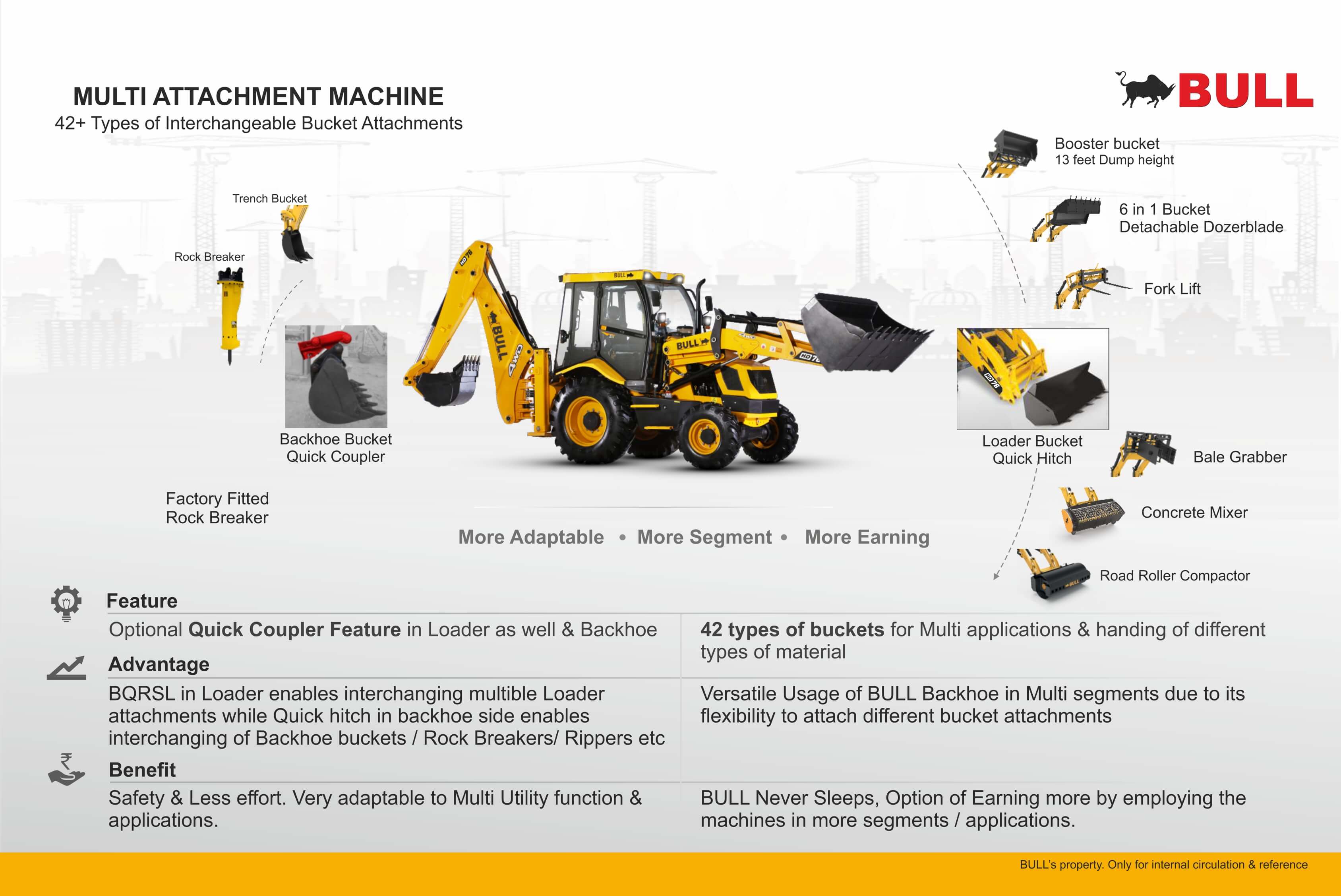

Multi loaders bucket options

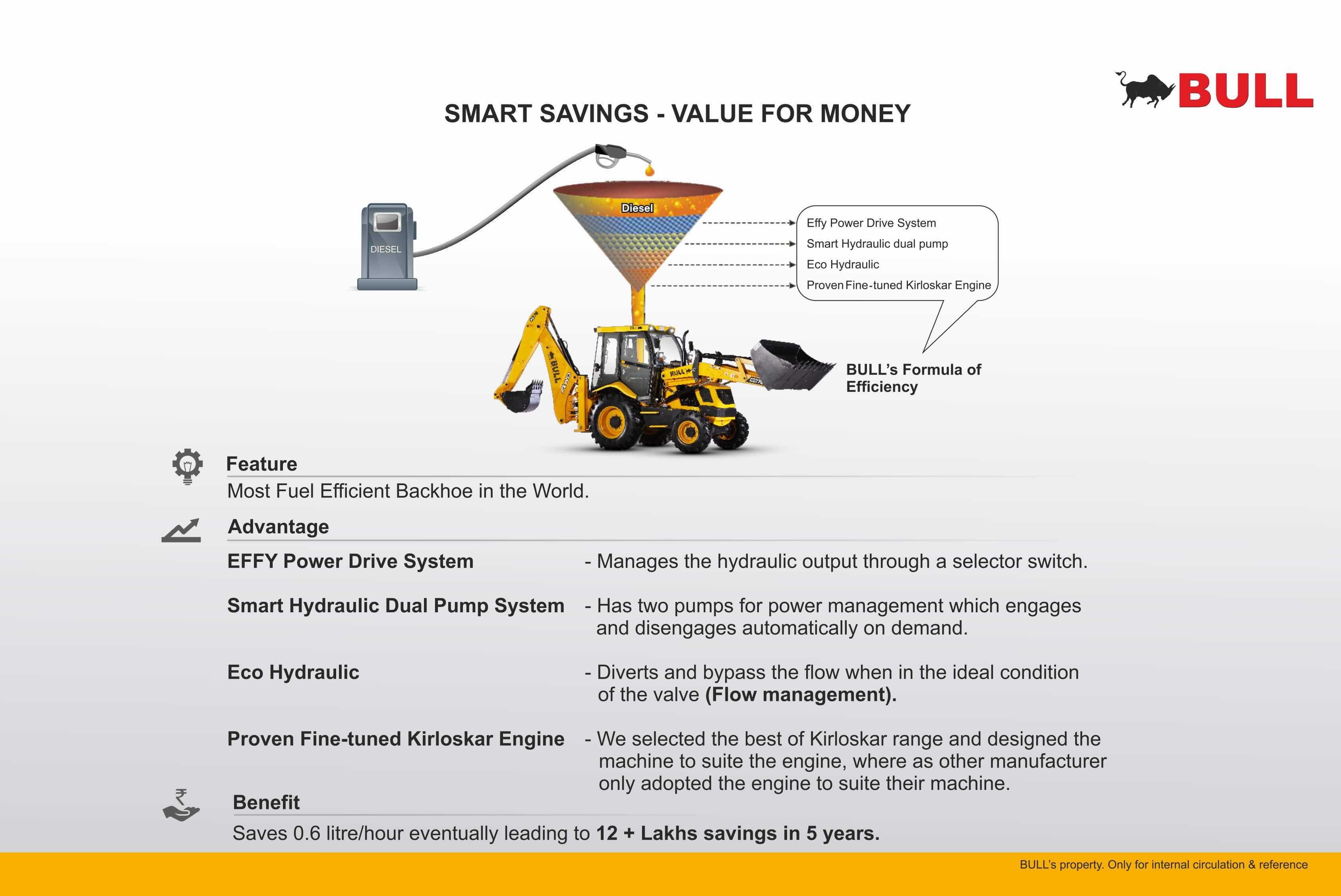

Most Fuel efficient Backhoe

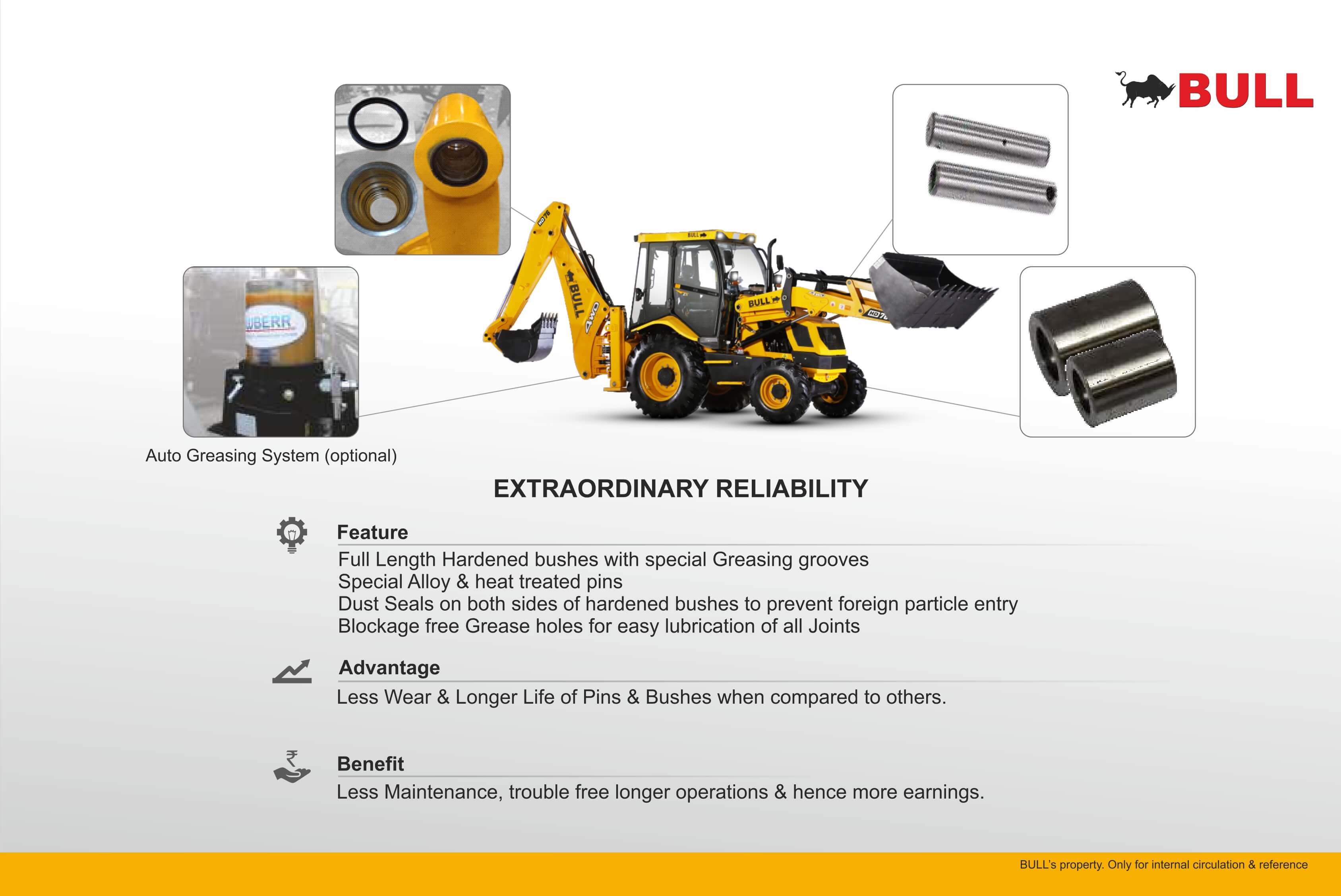

Extraordinary reliability

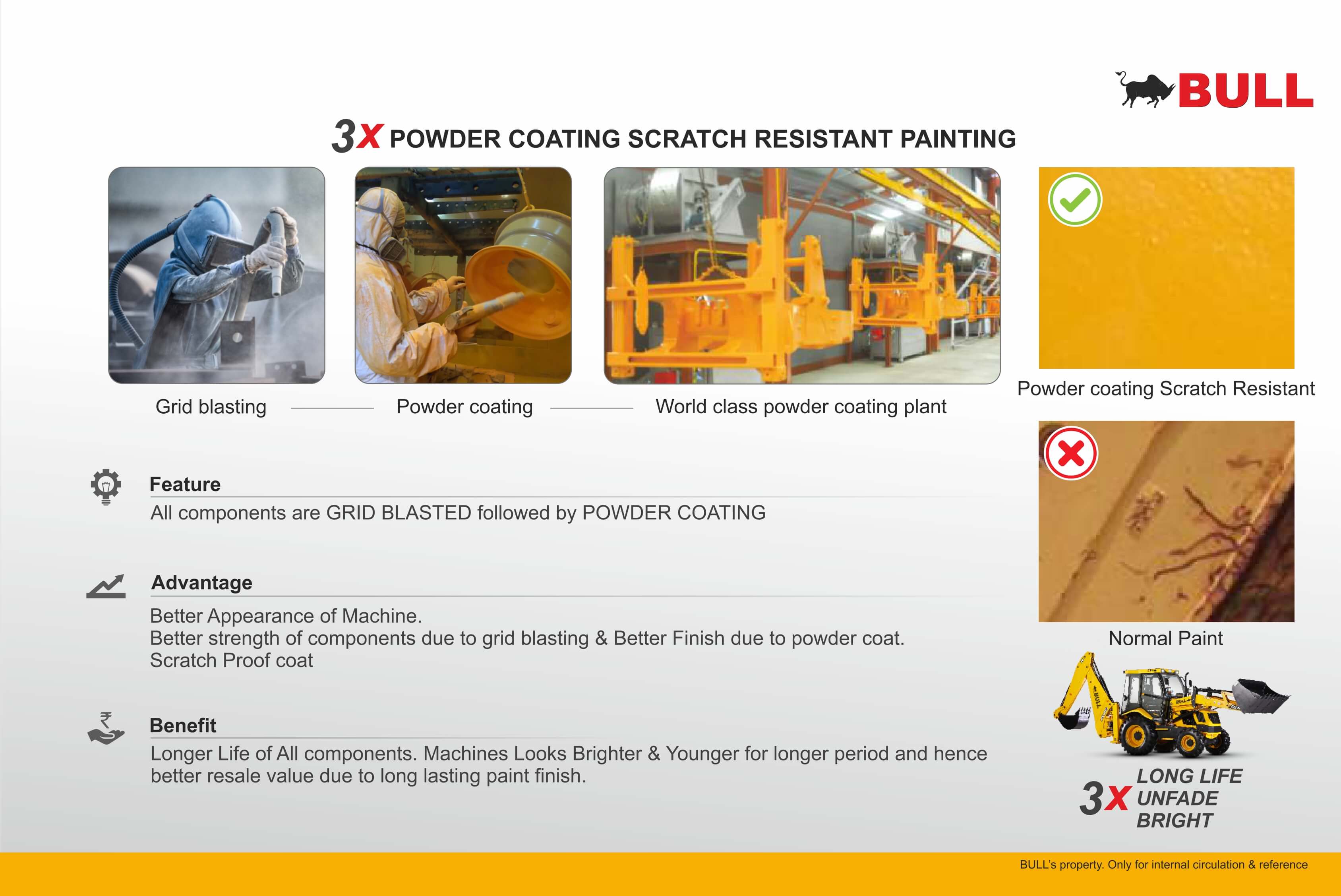

Scratch resistant painting
World class cabin

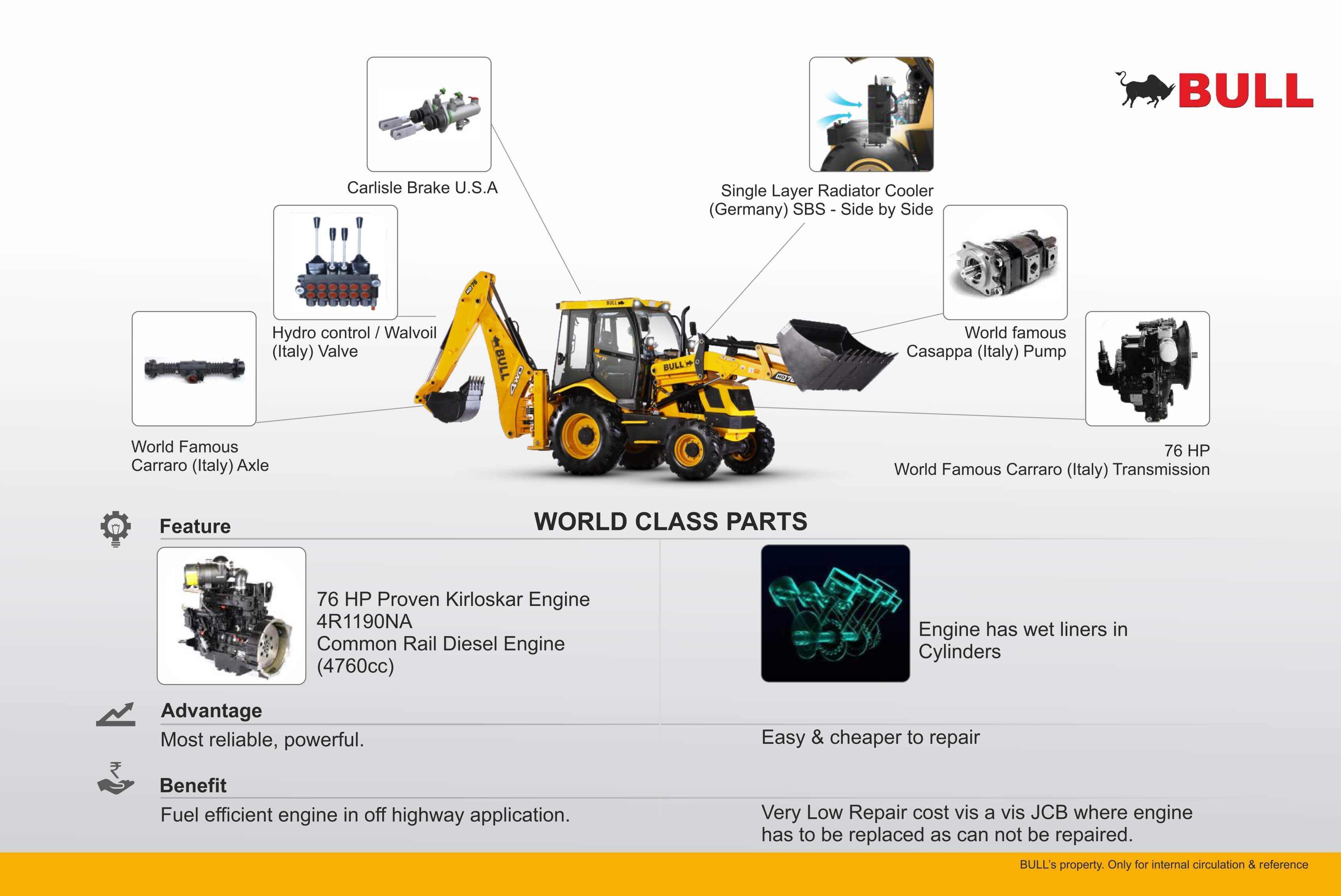

World's best parts

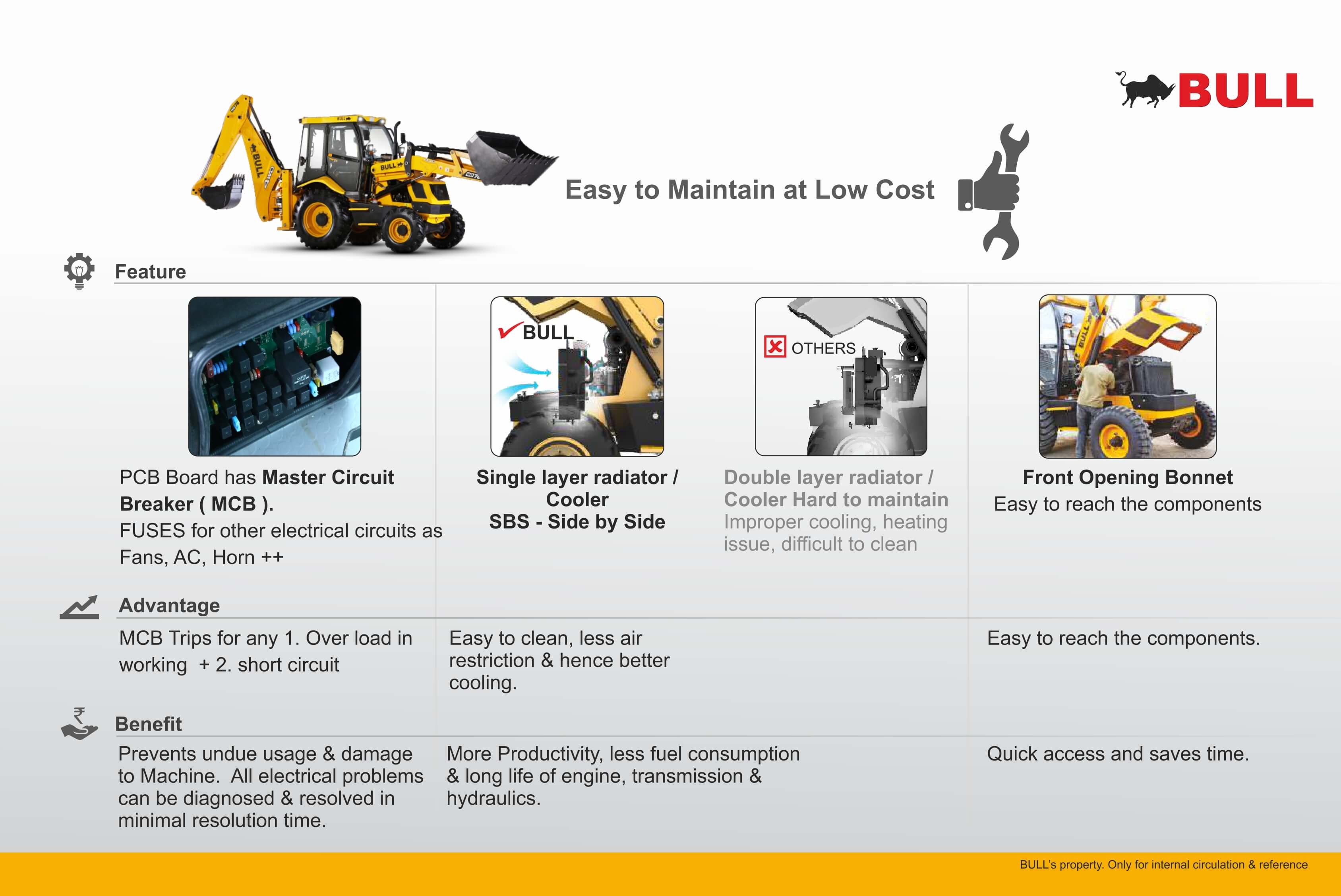

Easy low cost maintenance
Bucket Options

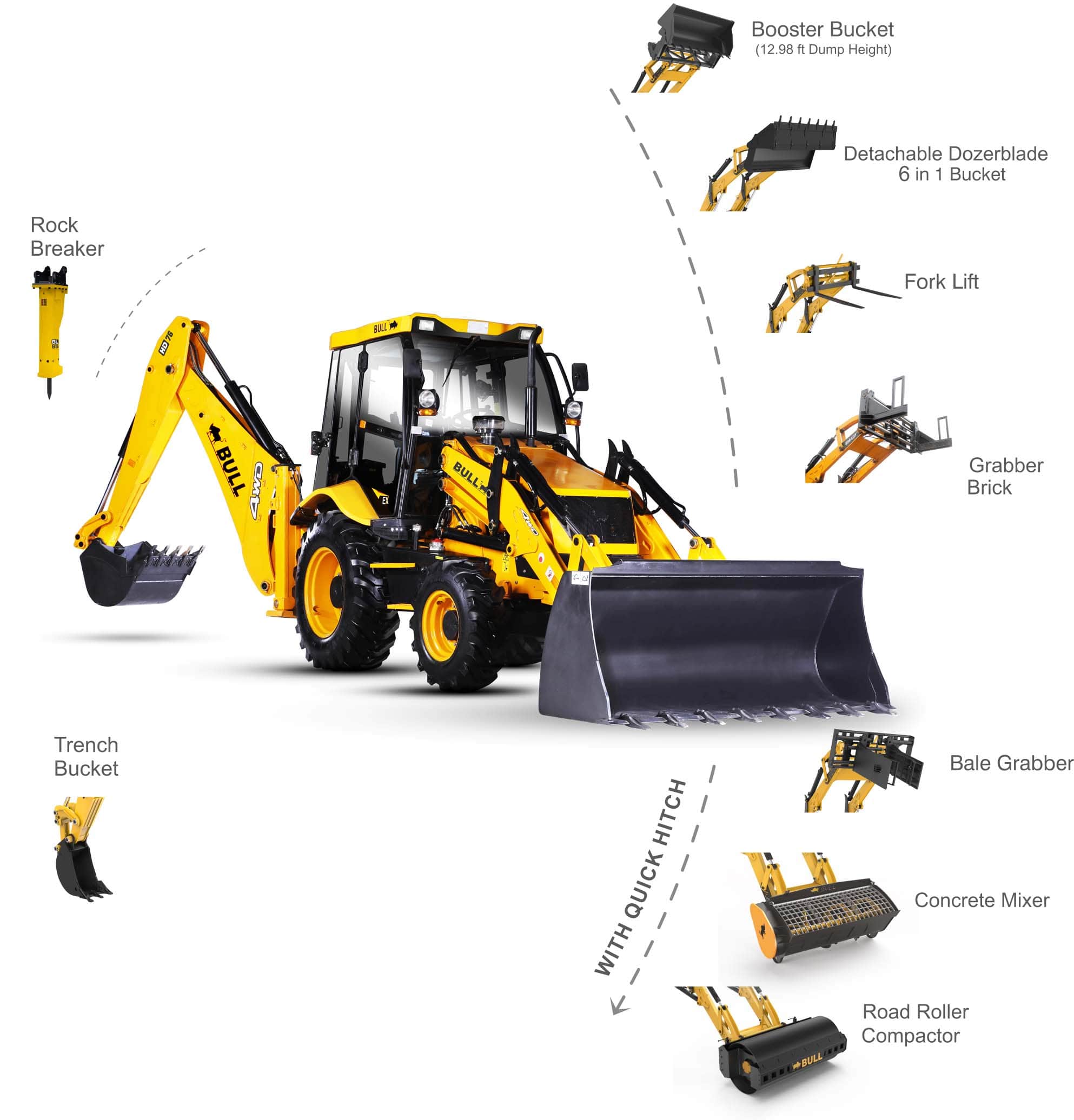

Different types of application specific quick interchangeable loader bucket options.
Technical information
- Dimensions
- Engine
- Transmission
- Axles
- Breaks
- Steering
- Electricals
- Tyres
- Turning Circle
- Speed
- Hydraulics
- Weight
- Service Capacities
- CAB
- Options

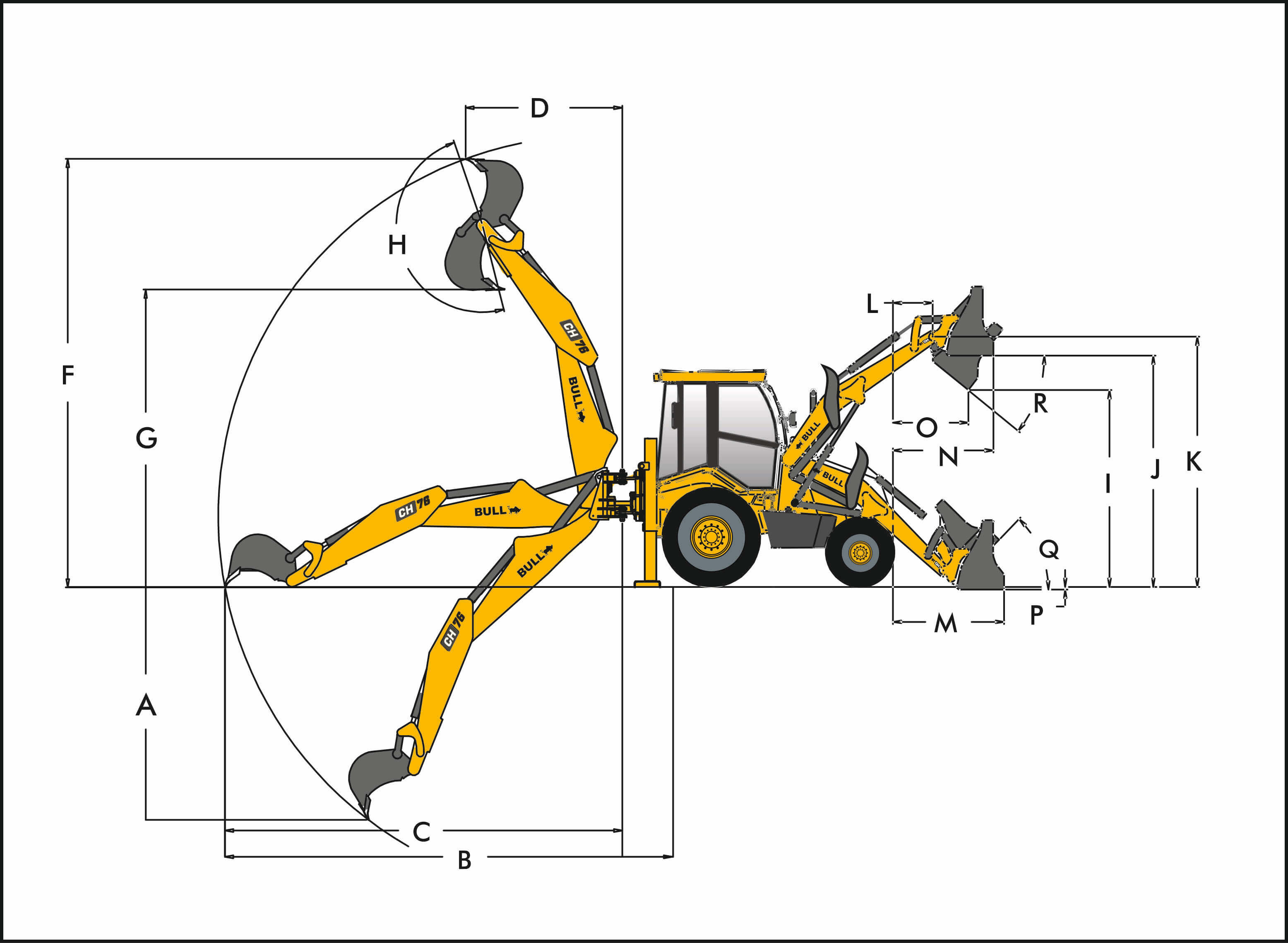

Dimensions
Excavator Performance
| Standard | |||
| meter | |||
| Standard Bucket Capacity | 0.27 cu.m (standard) | ||
| A | Maximum DIG Depth | 4.60 m | |
| B | Reach Ground Level to Rear wheel center | 6.81 m | |
| C | Reach Ground Level to slew center | 5.50 m | |
| D | Reach at full Height to slew center | 2.85 m | |
| F | Maximum working Height | 6.08 m | |
| G | Maximum Load over Height | 4.38 m | |
| H | Bucket Rotation - Power | 188' degree | |
| Bucket Tear out Force | 6531 kg | ||
| Dipper Tear our Force | 3150 kgf | ||
Loader Performance
| With Link Bracket | |||
| meter | |||
| Standard Bucket Capacity | 1.26 cu.m | ||
| I | Dump Height | 2.96 m | |
| J | Load Over Height | 3.39 m | |
| K | Pin Height | 3.61 m | |
| L | Pin Forward Reach | 0.42 m | |
| M | Reach at Ground | 1.47 m | |
| N | Reach at full height | 1.28 m | |
| O | Reach at full Height bkt Dumped | 0.89 m | |
| P | Below ground level DIG Depth | 0.1 m | |
| Q | Roll back at Ground | 49' degree | |
| R | Dump Angle | 45' degree | |
| Bucket Break-out Force | 8183 kgf | ||
| Loader Arm Break-out Force | 5315 kgf | ||
| Pay Load | 2400 kgf | ||
Engine
| Engine | Kirloskar 4R 1190, BS lV Diesel Engine (4760cc) |
| No of cylinder: | 4 |
| Gross Power: | 54.8 Kw (75HP) @ 2200 RPM |
| Gross Torque | 300Nm @1300 RPM |
Transmission
BULL SMART comes with CARRARO synchro-shuttle transmission that provides superb drive power in all conditions. it consists of a 4-speed fully synchromesh gearbox with integral torque convertor and electrically operated forward & reversing shuttle.
Option: SMART HTS offers state of the art open loop Hydrostatic drive(Patent pending).
Axles
Rear:Drive axle rigidly mounted, incorporates Max-trac torque proportioning differential, driven by short propshaft from gear box.
Front:Steer axle, centrally pivoted with oscillation angle ±16°.
Breaks
Service:Service: Hydraulically actuated, duel line, self adjusting, compensated oil immersed, multi-disc type on the rear axle, well protected from dirt, water etc., requiring no maintenance. Operation Through independent pedals linked together for normal use.
Two independently operatable foot pedals enable machine to maneuver in tight spaces.
Parking: Hand operated, oil immersed multi disc on the rear axle.
Steering
Full power, front wheel hydraulic power steering with manual capability in the event of engine or hydraullic power failure.
Hydraulic supply from pump via priority valve. Working pressure 1595 psi (110 bar)
Electricals
150 Ampere-hour 12 volts battery system with alternator and full road lighting.
Tyres
Front:2WD: 9.00X16 - I6PR, 4WD: 12.5/80X18 -12PR
Rear: 2WD&4WD :16.9X28 -12PR(STD INDUSTRIAL TYRE) : 14.00-20PR(HEAVY DUTY TYRE)
Turning Circle
Inner wheels bracked
A* Outside loader bucket 8.8 m
B Outside Wheels 6.3 m
Inner wheels not bracked
A* Outside loader bucket 11.6 m
B Outside Wheels 8.9 m
Speed
| Forward Km/hr | Reverse Km/hr |
| Max: 40 Km/Hr | Max: 9.3 Km/Hr |
Hydraulics
Pump Type : Gear Pumb
Pressure : 3335 PSI
Pump Flow : 120 Ipm (Max)
Weight
8160 kgs with Standard GP Bucket Option
Service Capacities
| System | Service | |
| Hydraulic Tank | 115 Ltr | 100 Ltr |
| Fuel Tank | 115 Ltr | - |
| Engine Coolant | 17 Ltr | 15 Ltr |
| Engine Oil | 10 Ltr | 10 Ltr |
| Transmission | 19.5 Ltr | 16 Ltr |
| Rear axle | 17 Ltr | 17 Ltr |
| 4WD Front Axle | 8 Ltr | 8 Ltr |

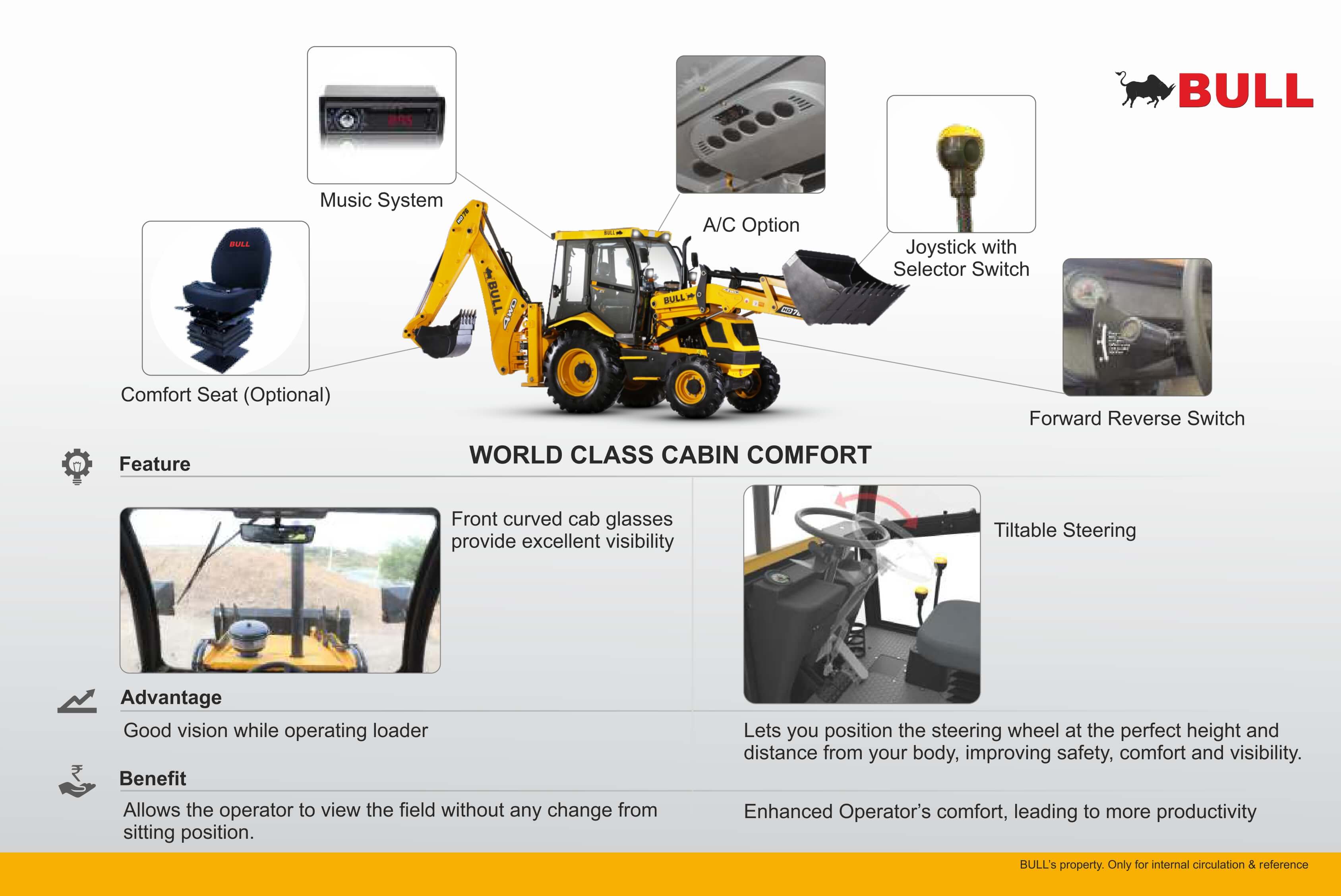

CAB
- Front Curved cab glasses provide excellent visibility.
- Excellent operator safety. Conforms to ROPS and FOPS standards.
- Plenty of legroom minimises fatigue and allows the operator to work un-interrupted for long hours.
- A fully adjustable seat combined with ergonomically positioned controls and soft touch steering wheel.
- Cab provides easy 'walk through' two door access. Other features include seat belt, large convex rear view mirror, interior light, front screen wiper, front and rear horn, hazard warning system, tool box and helper seat.
- Instrumentation panel is positioned on the right hand side includes engine speed, engine hours, fuel level and water temperature.
- Audible and visual fault warning system for alternator charge, coolant temperature, engine oil pressure, blocked air filter, transmission oil temperature and hand-brake on.
Options
Excavator Buckets
Capacities
- 0.23 cu.m (standard)
Options
- 0.12 cu.m
- 0.17 cu.m
- 0.21 cu.m
Rock Breaker
Ripper Tooth
Loader booster bucket with 12.98 feet dump height
4 wheel drive
